Benefits of the UHMWPE NAVIGATION BUOYS:
Maintenance-free: performance in four points
1, The colour is materials' own colour.There is no need of
painting in ten years, Saving in
manpower and resources
2, Caudal pipe has no conglutination. Any aquatic can not
conglutinate
floating body's
caudal pipe, saving manpower and substance of shoveling aquatic beings.
3, The buoy can resist impact, so it can significantly reduce the chances of being damaged and
Save in manpower and resources to repair buoy.
4, The sink-hammer is confined to the caudal pipe, avoiding Water erosion.
Impact-resistant:
performance in seven points
1, Floating-body material has a higher degree of flexibility and hardness.( CMB floating-body
material's Rockwell hardness is 40, Standard Steel Materials' Rockwell hardness is 45), when
impacted by external power, it can absorb the energy rapidly and restore the prototype
2, The buoy has light weight, small inertia. When impacted, it can quickly shift to resolve the
impact force, avoiding damage.
3, Floating-body is flexible and strong, anti-tension, and very difficult to tear. So it can
Maximize maximize absorption of impact force
4, Floating body has strong internal flexible steel skeleton, polyurethane foam's pouring density
≥ 46kg/m3.These things play a strong support on the floating body to ensure the floating body
can quickly resore after impacted without deformation.
5, lamp bracket eliminates the traditional angle by 6mm and 8mm thick steel plate Q235
stamping manufacturers. We have done many improvements in line with GB on basic, its security,
anti-impact ability, life expectancy have a substantial increase
6, Floating body and the connecting pipe joint as a whole through the electric welding, lamp
bracket Connectes the connecting pipe with 8 316L-M20 stainless steel bolt (Each bolt's shear
force is 78KN, tensile yield stress 52KN), Strong enough to resist any impact force.
7, Lamp safe guard ring eliminates the traditional steel tube bending by 30mm thick UHMWPE
plate to replace ,with steel bracket to support. So it has Has powerful anti-deformation capability
and enhanced lighting and solar panels on the protective effect.
Long life:
performance in three points
1, The buoy's molecular weight is 2,500,000 or more, and very resistant to outdoor ultraviolet
radiation. It will not be aging for several decades with mechanical properties no change.
2, Lamp bracket do a phosphating treatment and paint four times. lamps stent can be used for
more than 20 years (once every two years, painting).
3, Because hanging ears adopt the special structure, its ears hanging alone limit load up to 60
tons.
High environmental protection: performance in two points
1,The buoy is all made of high strength plastic materials. Material properties of its high chemical
stability. In the seawater it will not decompose for decades, and at the same time does not pollute
the water.
2,The sink-hammer confined to the tail pipe will not be affected by sea water corrosion and water
pollution.Features of CMB single body of plastic buoy with Split modular plastic buoy, Steel buoy

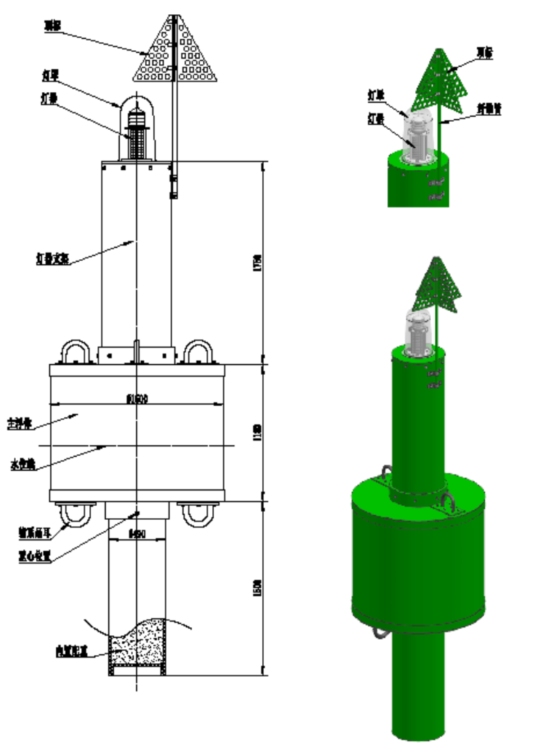

Drawings of UHMWPE navigation buoy :
